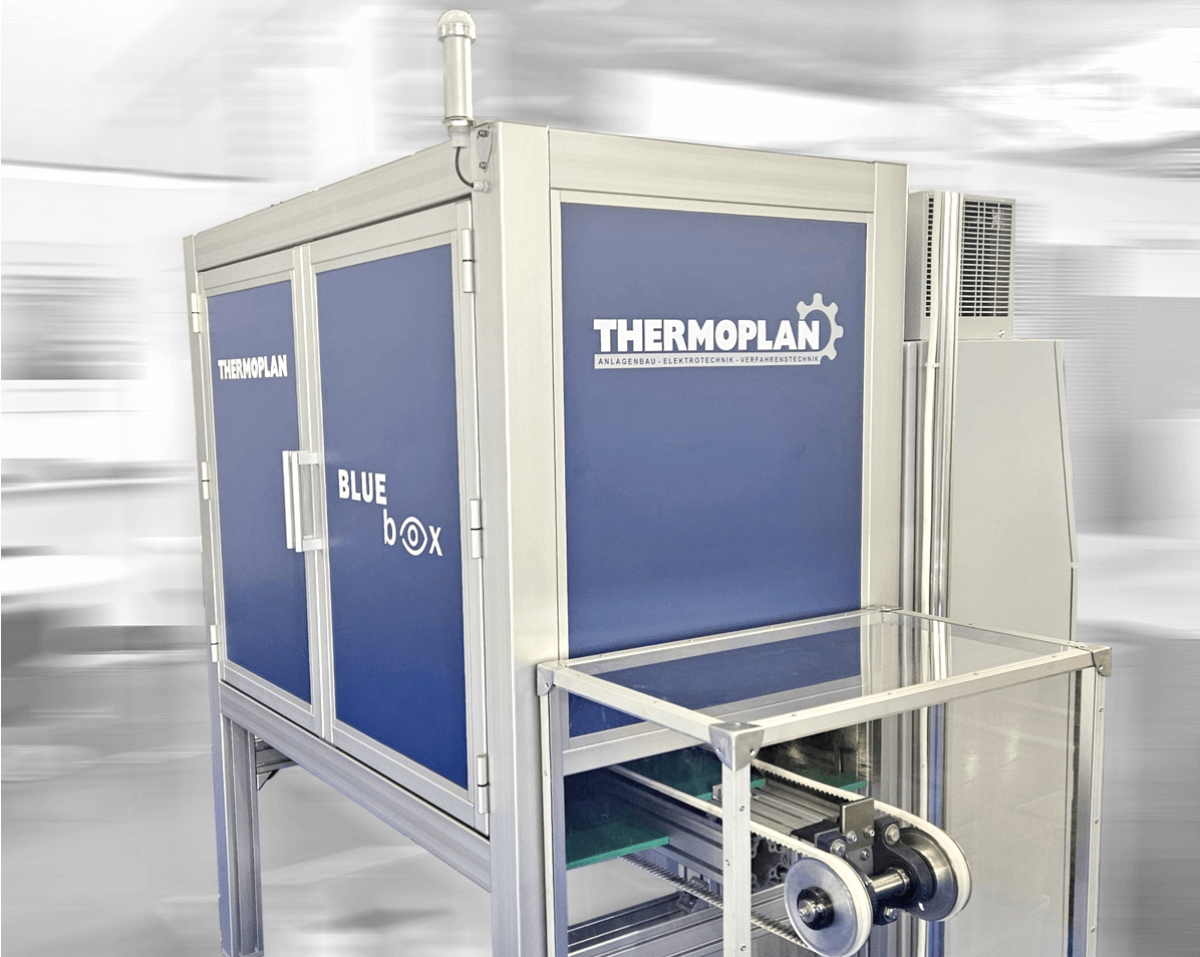

Die BLUEBOX von Thermoplan

QUALITY INSPECTION SYSTEMS

The complete solution in one system

Our Bluebox has three separate measuring systems that can be integrated depending on customer requirements: 3D laser measurement, sound testing and surface testing. 3D laser measurement enables the absolute dimensional accuracy (length, width, height) to be checked and any curvature of the brick to be detected. This involves striking the tile from above to produce a sound. The position of the impact to the respective test object is always kept constant via a linear traversing unit.The surface inspection is used to detect absolute and relative optical defects, such as engobe/glaze changes or stains and flaking.

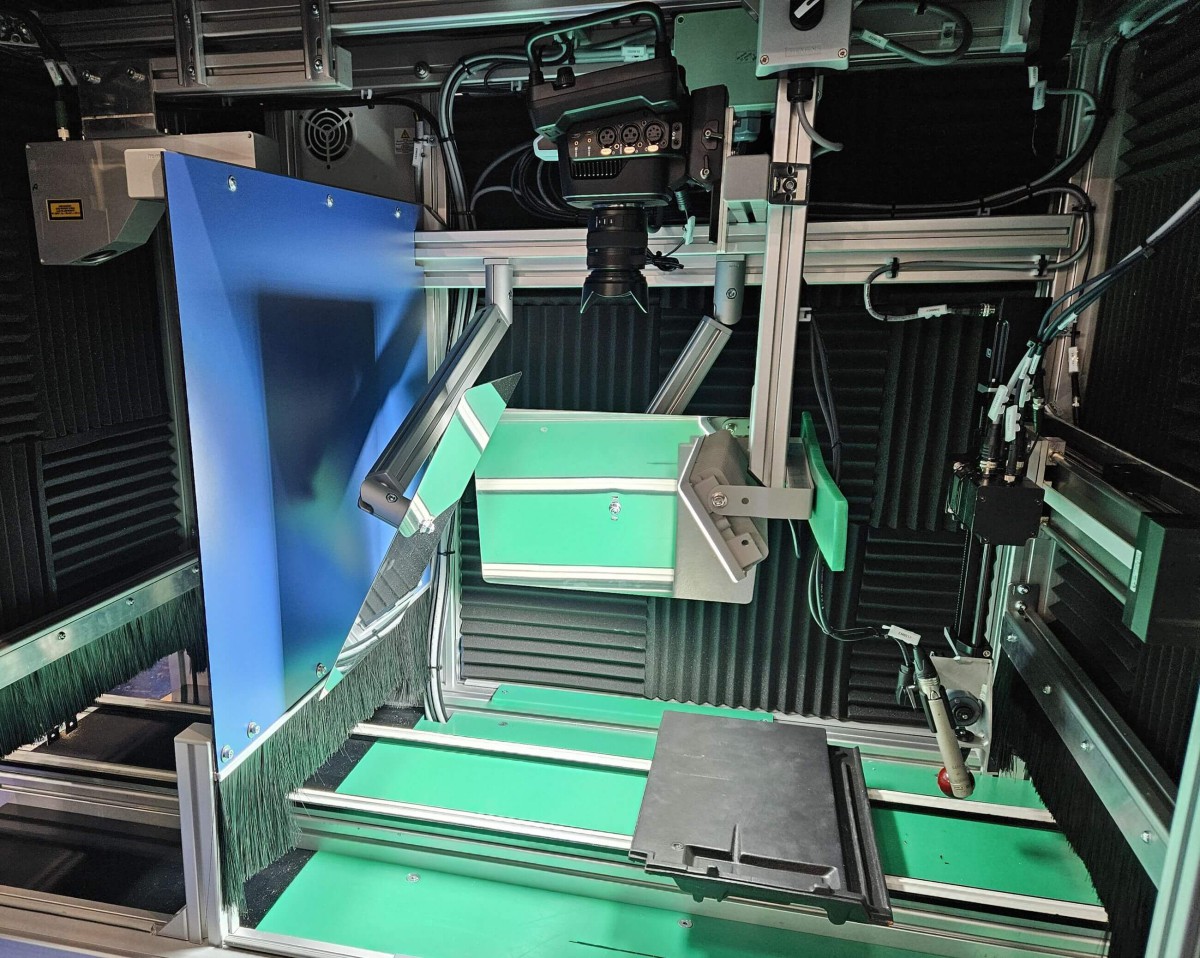

Die BLUEBOX von Thermoplan Innenansicht

Quality inspection made easy thanks to:

  • Information and configuration available
    everywhere via web-based interface

  • Intuitive operation, adapted to every customer,
    every employee has the possibility to
    work with the programme .

  • Regardless of size, speed, or accuracy,
    we always find the suitable solution

  • Glossy or black surfaces are no problem
    thanks to high-energy lasers
